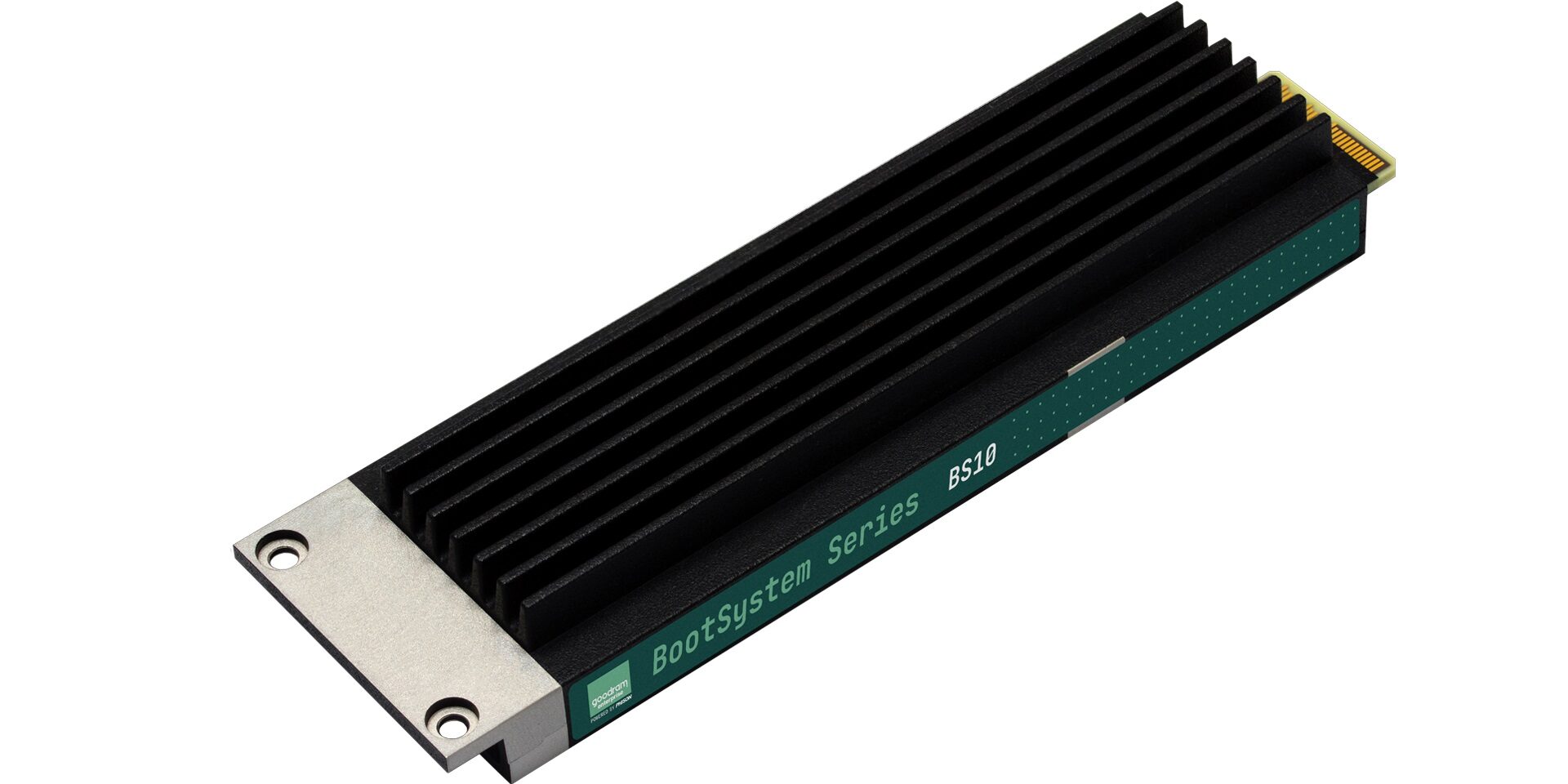

BS05/BS05/BS10
Server performance begins at the core, where applications and background tasks are managed. Goodram Enterprise powered by Phison boot drives are engineered for reliability and I/O consistency, delivering optimal performance even in high-demand rack scale environments.
Key features
- Available capacities:
BS05: 240 – 960 GB BS10: 480 – 960 GB
- Capacity up to 960 GB
- Reliability – 4th generation of LDPC ECC engine
- Power Loss Protection (PLP)
- Security Features like TCG Pyrite, AES256, SHA512 and RSA4096
| BS05 | BS05 | BS10 | |
|---|---|---|---|
| Capacity | 240GB – 960GB | 240GB – 960GB | 480GB – 960GB |
| Interface | SATA III | SATA III | PCIe 4.0x4 |
| Form Factor | M.2 22x80mm | 2.5” | M.2 22x80mm |
| Sequential read (MB/s) | 530 | 530 | 5000 |
| Sequential write (MB/s) | 500 | 500 | 700 |
| Random read (IOPS) | 98K | 98K | 450K |
| Random write (IOPS) | 30K | 30K | 30K |
| DWPD | 1 | 1 | 1 |
| Safety | AES-256 TCG OPAL 2.0 | AES-256 TCG OPAL 2.0 | AES-256 TCG OPAL 2.0 |
| NVMe | E2EDPP PLP | E2EDPP PLP | E2EDPP PLP |
| Other | MP | MP | MP |
