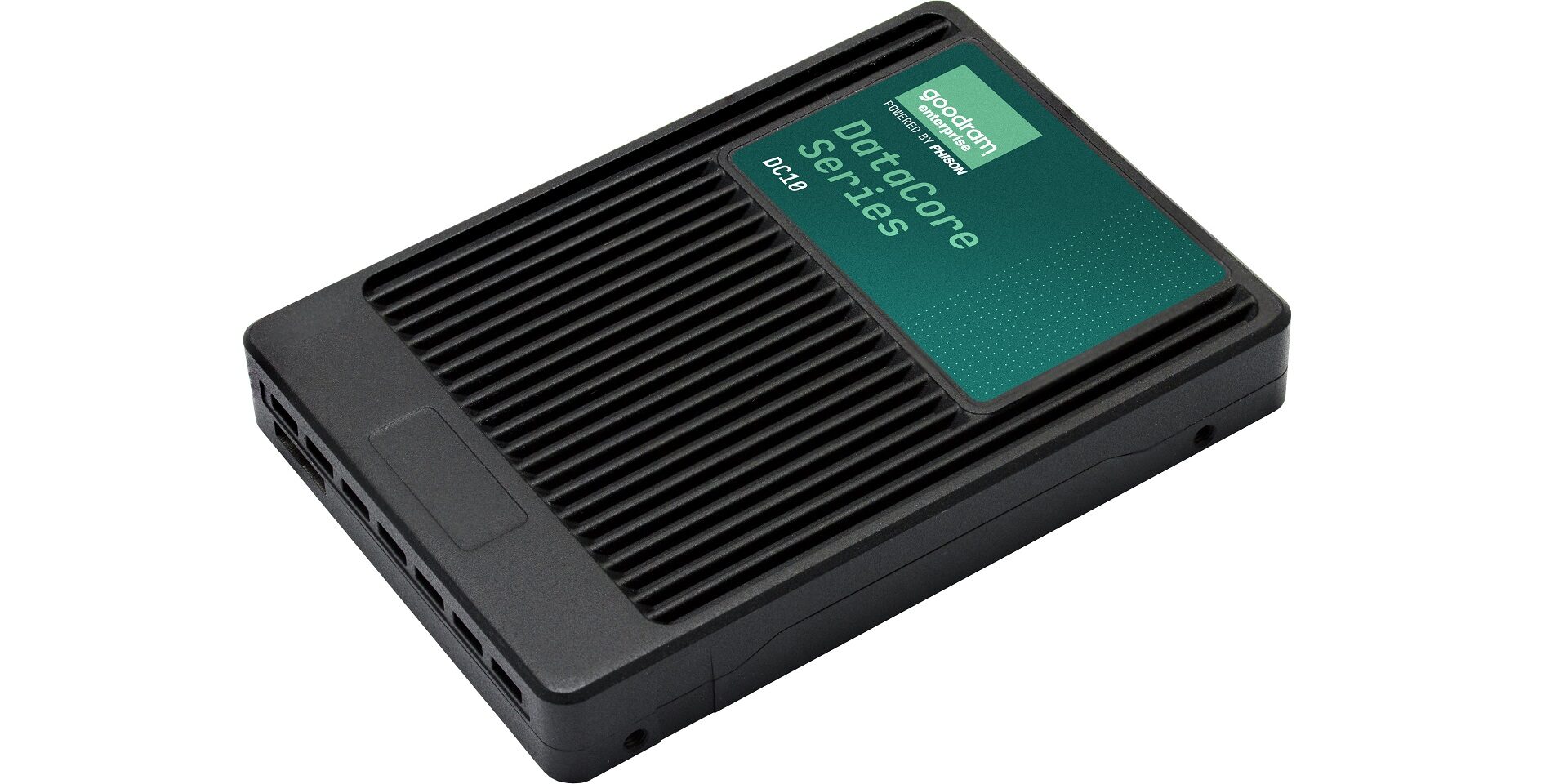

DC10M/DC20M/DC20S/DC20F/DC25F
Modern data center architectures require a wide range of storage solutions tailored to specific needs for capacity, performance, and features. Through the collaboration between Phison and Goodram, the DataCore Series offers versatile SSD solutions that are fully compatible with both industry-standard and custom data center servers. These drives are designed to support the growing data demands of today’s applications and users, while also minimizing power consumption, making them a highly efficient choice for data center environments.
Key features
- Available capacities:
DC10M: 480 – 1920 GB DC20M: 1.92 – 7.68 TB DC20S: 1.6 – 6.4 TB DC20F: 30.72 – 61.44 TB DC25F: 122.88 TB
- Capacity up to 122,88 TB
- NVMe 2.0
- AES-XTS 256-bit Encryption
- NVMe-MI (Management Interface)
| DC10M | DC10M | DC10M | DC10M | DC20M | DC20S | DC20F | DC25F | |
|---|---|---|---|---|---|---|---|---|
| Capacity | 480GB – 1.92TB | 480GB – 3.84TB | 480GB – 3.84TB | 480GB – 1.92TB | 1.92TB – 7.68TB | 1.6TB – 6.4TB | 30.72TB – 61.44TB | 122.88TB |
| Interface | PCIe 4.0x4 | PCIe 4.0x4 | PCIe 4.0x4 | PCIe 4.0x4 | PCIe 5.0x4 | PCIe 5.0x4 | PCIe 5.01x4, 2x2 | PCIe 5.01x4, 2x2 |
| Form Factor | M.2 22x80mm | M.2 22x110mm | E1.S 9.5mm | U.2 15mm | E1.S 9.5mm (1.92 & 3.84 TB) E1.S 15mm (7.68TB) | E1.S 9.5mm (1.6 & 3.2 TB) E1.S 15mm (6.4TB) | U.2 15mm (30.72TB & 61.44TB) E3.S 1T (30.72TB) E3.L 1T (61.44TB) | U.2 15mm E3.S 1T E3.L 1T |
| Sequential read (MB/s) | 6,000 | 6,000 | 6,800 | 6,800 | 14,000 | 14,000 | 14,000 (Est.) | 14,000 (Est.) |
| Sequential write (MB/s) | 1,800 | 1,800 | 2,000 | 2,000 | Up to 8,300 (Est.) | Up to 8,300 (Est.) | Up to 3,000(Est.) | Up to 3,000(Est.) |
| Random read (IOPS) | 800K | 800K | 900K | 900K | Up to 3,300K (Est.) | Up to 3,000K (Est.) | Up to 3,000K (Est.) | Up to 3,000K (Est.) |
| Random write (IOPS) | 60K | 60K | 70K | 60K | Up to 400K (Est.) | Up to 800K (Est.) | Up to 34K (Est.) | Up to 35K (Est.) |
| DWPD | 1 | 1 | 1 | 1 | 1 | 3 | 0.3 | 0.3 |
| Safety | AES-256 TCG OPAL 2.0 | AES-256 TCG OPAL 2.0 | AES-256 TCG OPAL 2.0 | AES-256 TCG OPAL 2.0 | AES-256 TCG OPAL 2.0 | AES-256 TCG OPAL 2.0 | AES-256 TCG OPAL 2.0 | AES-256 TCG OPAL 2.0 |
| NVMe | 64 Namespaces NVMe-MI over SMBus E2EDPP | 64 Namespaces NVMe-MI over SMBus E2EDPP | 64 Namespaces NVMe-MI over SMBus E2EDPP | 64 Namespaces NVMe-MI over SMBus E2EDPP | 128 Namespaces NVMe-MI over SMBus E2EDPP | 128 Namespaces NVMe-MI over SMBus E2EDPP | 128 Namespaces NVMe-MI over SMBus E2EDPP | 128 Namespaces NVMe-MI over SMBus E2EDPP |
| Other | PLP | PLP | PLP | PLP | PLP | PLP | Dual port, PLP | Dual port, PLP |
| Status | MP | MP | MP | MP |
