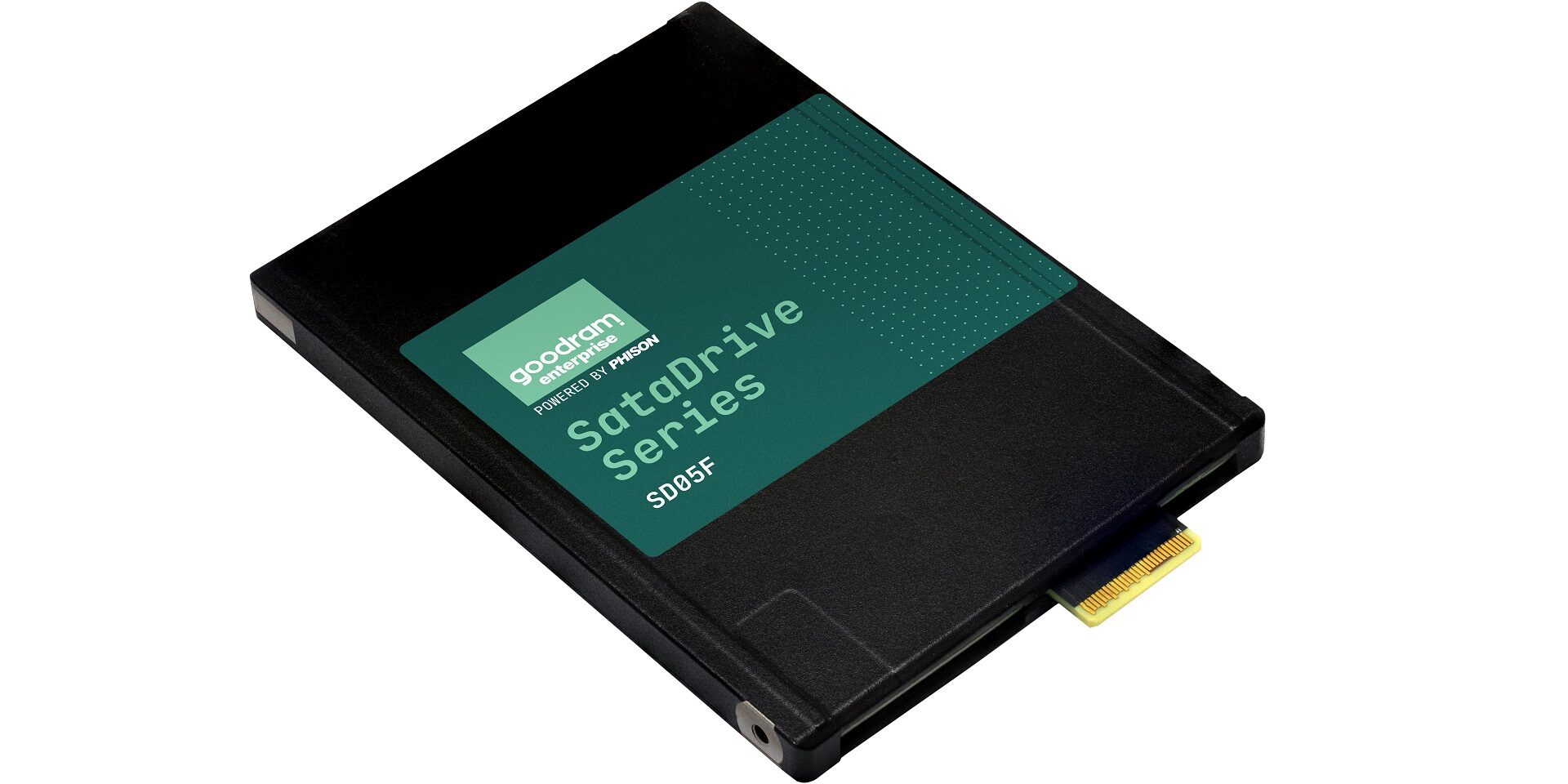

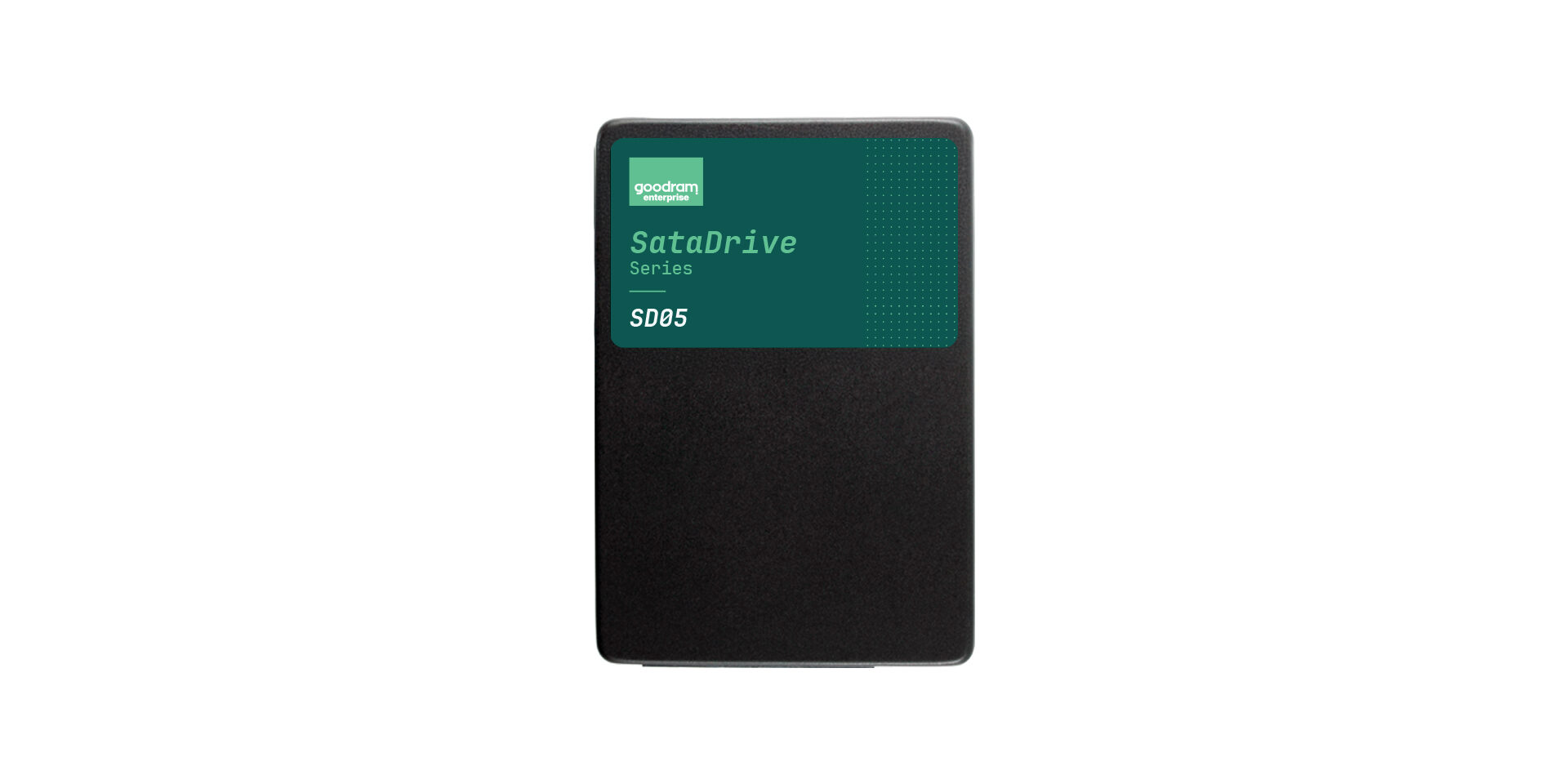

SD05F/SD05M/SD05S
Optimize the power usage of your legacy servers with the high-performance, high-capacity Goodram Enterprise powered by Phison SATADrive Series solutions. These products are specifically designed to enhance the lifespan and functionality of your current servers, eliminating the need for a full infrastructure upgrade.
Key features
- Available capacities:
SD05F: 1.92 – 15.36 TB SD05M: 480 – 7.68 TB SD05S: 480 – 3.84 TB
- Capacity up to 15 TB
- DWPD up to 3
- SATA Compatibility
- End-to-End Data Path Protection
- Reliability – 4th generation of LDPC ECC engine
| SD05F | SD05M | SD05S | |
|---|---|---|---|
| Capacity | 1.92TB – 15.36TB | 480GB – 7.68TB | 480GB – 3.84TB |
| Interface | SATA III | SATA III | SATA III |
| Form Factor | 2.5’’ 7mm | 2.5’’ 7mm | 2.5’’ 7mm |
| Sequential read (MB/s) | 530 | 530 | 530 |
| Sequential write (MB/s) | 500 | 500 | 500 |
| Random read (IOPS) | 97K | 98K | 98K |
| Random write (IOPS) | 20K | 40K | 77K |
| DWPD | 0.4 | 1 | 3 |
| Safety | AES-256 TCG OPAL 2.0 | AES-256 TCG OPAL 2.0 | AES-256 TCG OPAL 2.0 |
| NVMe | E2EDPP PLP | E2EDPP PLP | E2EDPP PLP |
| Other | MP | MP | MP |
